springloaded
spring-loaded

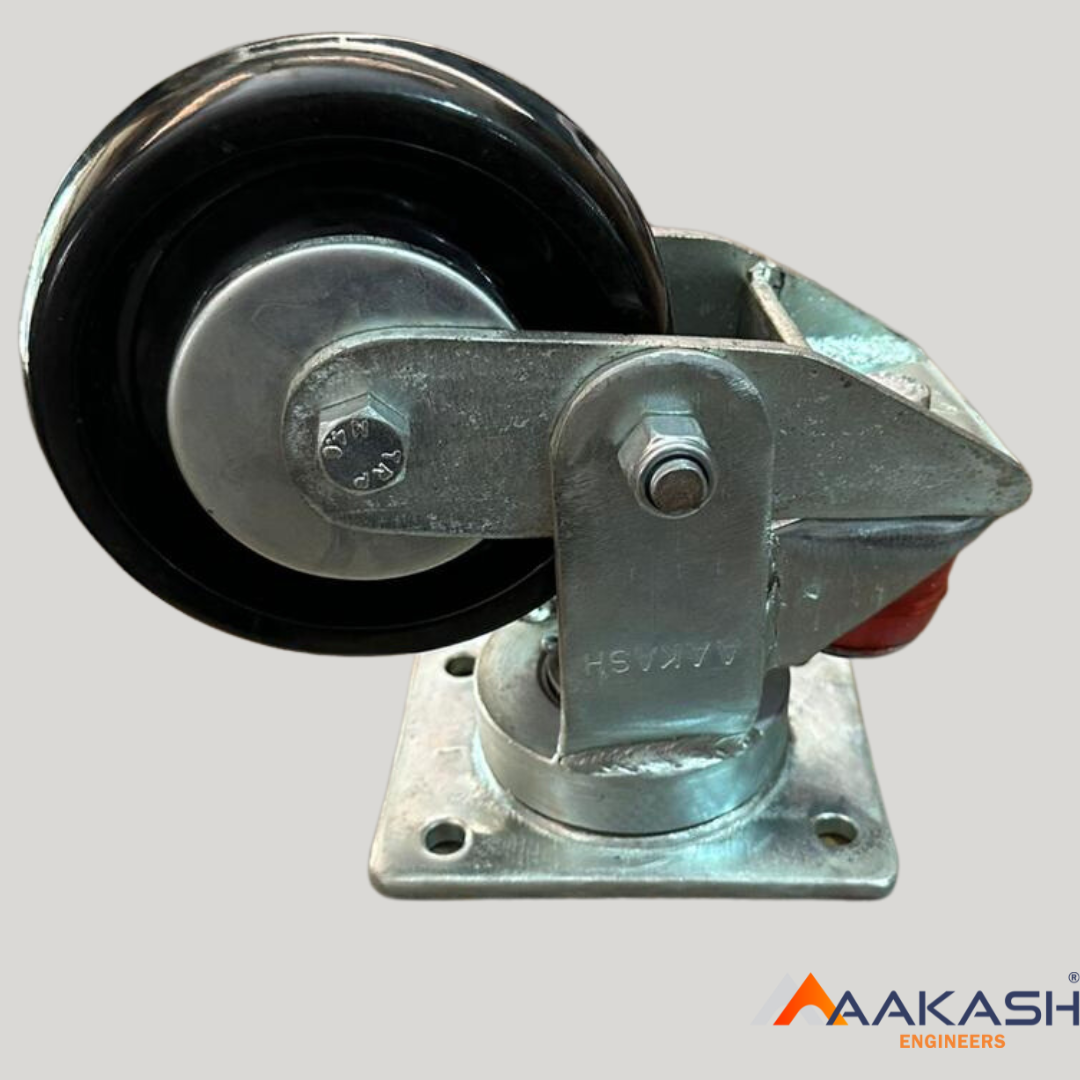

Spring Loaded Caster Wheels

Trolley Wheels & Heavy Duty Caster

Plate Size    :-    140 mmx 110 mm

Hole Distance :- 105 mm x 75 mm

Wheels With B.B. Available :- Uhmw (Hdpe) , P.U. On C.I , P.U. On Nylon

WHEEL DIATREAD WIDTHOVER ALL HEIGHTLOAD CAPACITYCATLOGUE REFERENCE
100mm50mm165mm300KGAE/42/PUONCI/SWIVEL/FIX
125mm50mm180mm400KGAE/52/PUONCI/SWIVEL/FIX
150mm50mm195mm (203mm)500KGAE/62/PUONCI/SWIVEL/FIX
200mm50mm257mm600KGAE/82/PUONCI/SWIVEL/FIX
heavy_duty

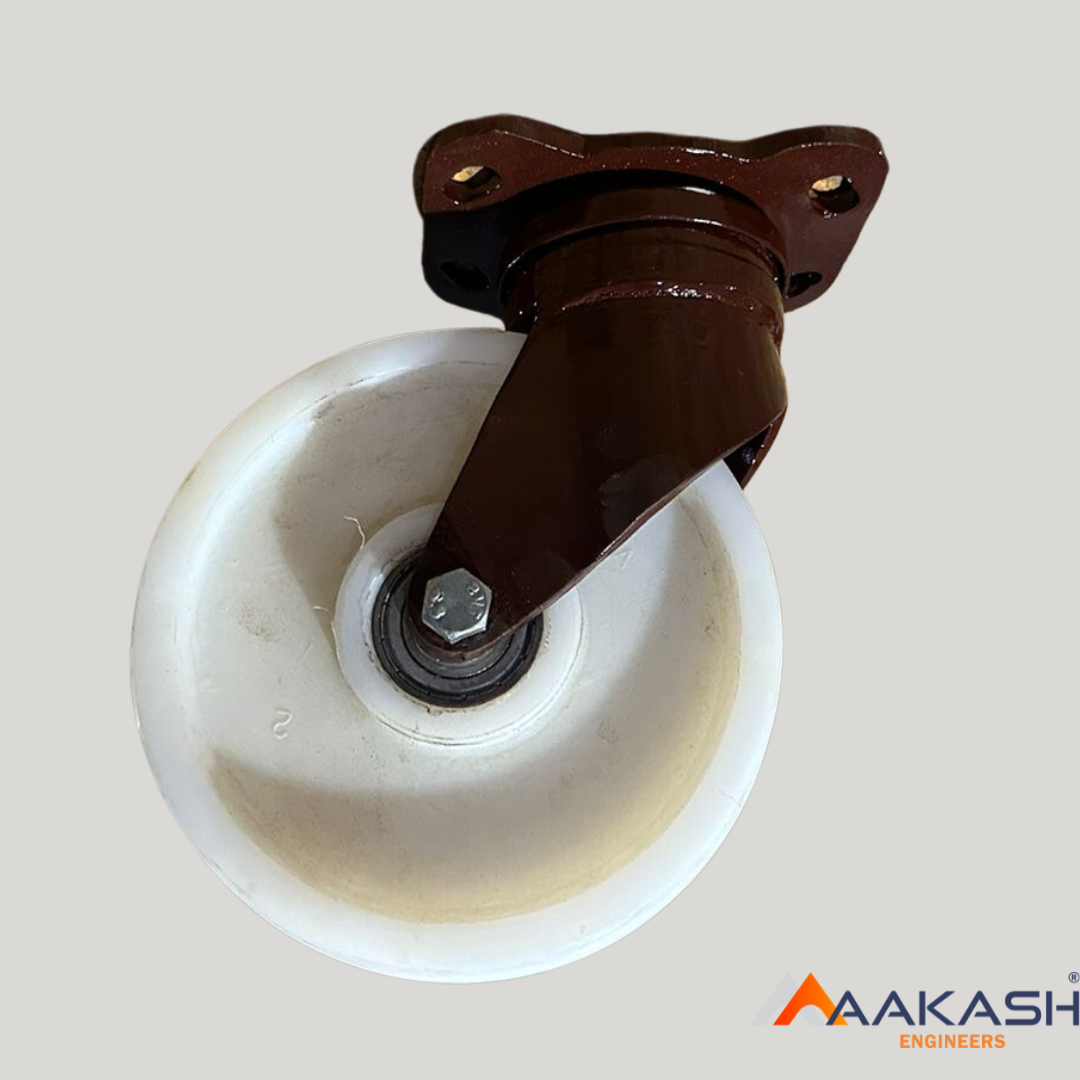

Heavy Duty Caster (With Thrust & Tapper Bearing)

Heavy Duty Caster Swiveling with Thrust Bearing & Tapper Bearing

This Casters available with Foot Operated Break type Directional Lock four ways

Impact Shock Resistance Spring Loaded

Wheels with B.B. available : UHMW ( HDPE )

P.U. on C.I.

P.U. on Nylon

Fibre Wheel

DiaWidthOverall HeightLoad Capacity
mmmmmmkg.
10050167400
12550192450
15050217500
20050267600
30050317625
medium-duty-caster

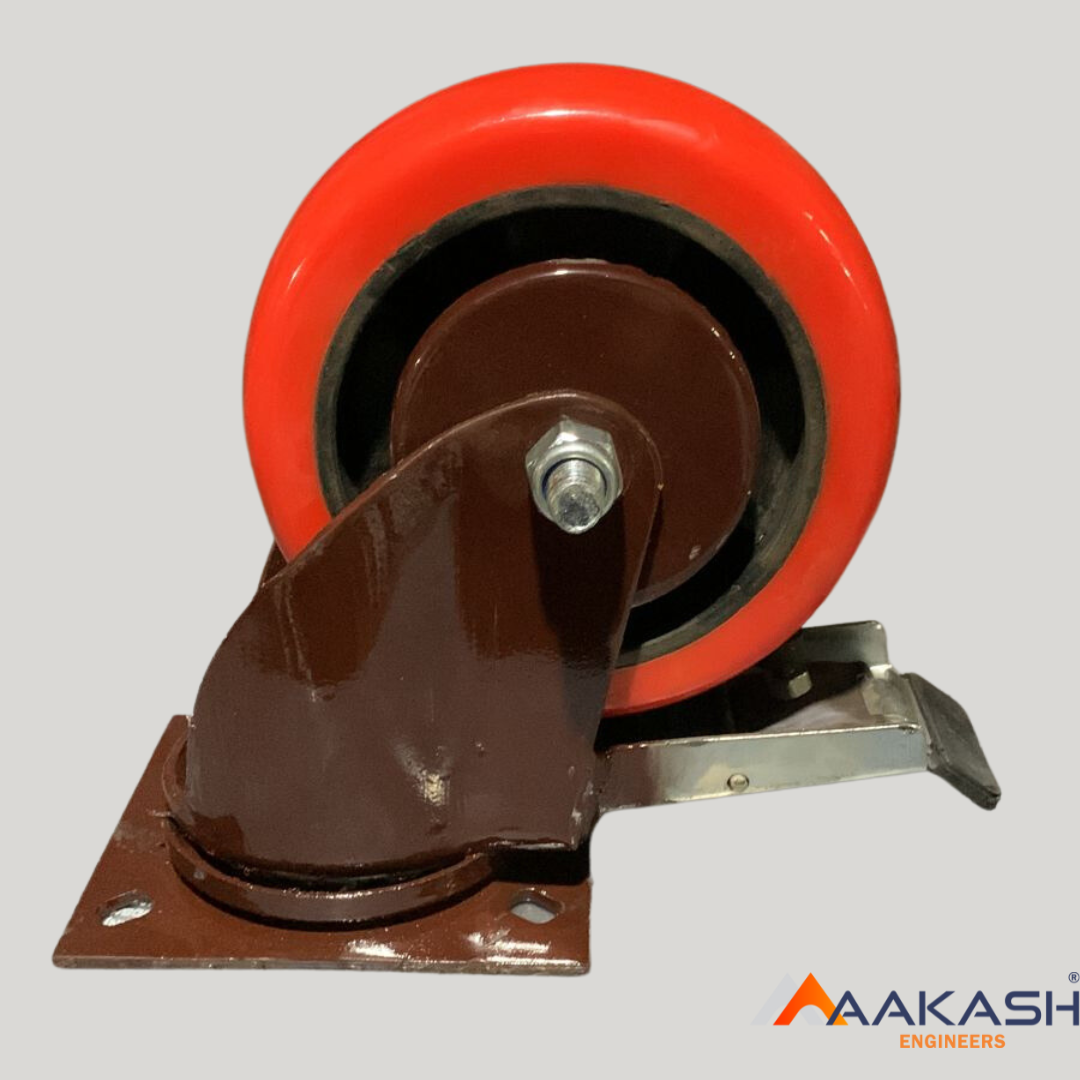

Medium Duty (Pressed Steel Caster Break Type)

Plate Size for Swivel : 130 x 115 mm

Hole Distance : 105 x 78 mm

Hole Distance : 100 x 55 mm

Wheels with B.B. : P.U. on Nylon

Cast Iron UHMW HDPE

DiaWidthOverall HeightLoad Capacity
mmmmmmkg.
10050130150
12550167200
15050190250
20050225275
havy-duty-steel

Heavy Duty ( forged steel)

Heavy Duty forged steel, Caster for load from 200 to 2000kg.s per Casters Dimensions of Top plate, Bolt hole centers and same for swivel & fix type casters plate size – 155 x 95 hole distance 120 x 60

Wheel Dia 100Tread width 50Overall height 155Load capacity 275/300Types of wheel with needle Roller Bearing Cast IronCatalogue Reference A.A / 4Cl/Swivel/Fix
10050155180/225Ruber BondedA.A / 4RT/ Swivel/ Fix
10050155250/300Fiber or UHMW / P.U.A.A /4F/Swivel/Fix
12550180480/600Cast IronA.A/5Cl/Swivel/Fix
12550180200/230Ruber bondedA.A/5RT/Swivel/Fix
12550180300/350Fiber or UHMW/ P.U.A.A/5F/Swivel/Fix
15050205600/700Cast IronA.A/6C1/Swivel/Fix
15050205225/350Ruber BondedA.A/6RT/Swivel//Fix
15050205400/500Fiber or UHMW/P.U.A.A/6F/Swivel//Fix
20050255650/820Cast IronA.A/8Cl/Swivel//Fix
20050225400/550Ruber BondedA.A/8RT/Swivel//Fix
20050255500/720Fiber or UHMW/P.0A.A/8F/Swivel//Fix
25050305880/900Cast IronA.N10Cl/Swivel//Fix
25050305500/650Ruber BondedA.A/1ORTI/Swivel//Fix
25050305650/850Fiber or UHMW/ P.U.A.A/10F/Swivel//Fix
300503551100/1225Cast IronA.A/12C1/Swivel//Fix
30050355600/700Ruber BondedA.A/12RT/Swivel//Fix
30050355600/700Fiber or UHMW/P.U.A.A/12F/Swivel//Fix
ss-steel

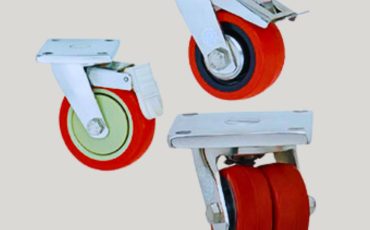

Stainless Steel Caster ( SS Steel)

Medium Duty Pu / Uhmw / Fibre 8: Rubber Wheel
Any Combination Of Material ‘On Stainless. Steel Casters

All Sizes Are Available With Foot Break Stud Type,
Fixed Type, Ball Bearing, And Bush Bearing

WHEEL DIA X WIDTH IN MMPLATE SIZEHOLE PCDHEIGHT IN MMCAPACITY EACH KG
50x25 75 x50 60x30 75 30
75 x 2575 x 6554 x 4310040
75 x 3075 x 7555 x 5510075
100x30 100x80 80x60 130 85
125x30100x10075x75130I20
125x50100x10075x75155150
100x50100x10075x75130120
150x50100x10075x75190175
200x50150x100125 x75235200

Track Caster

Square Groove Caster (SQG)

track-castor

Flange Caster (FLG)

track-castor02

Vee Groove Caster (VG)

track-castor03

The track casters are designed for use over inverted angle iron tracks or over square section or over rails. Cast iron wheels with either Vee-groove or square groove or a flange are available depending upon the of track over which the casters have to move.
