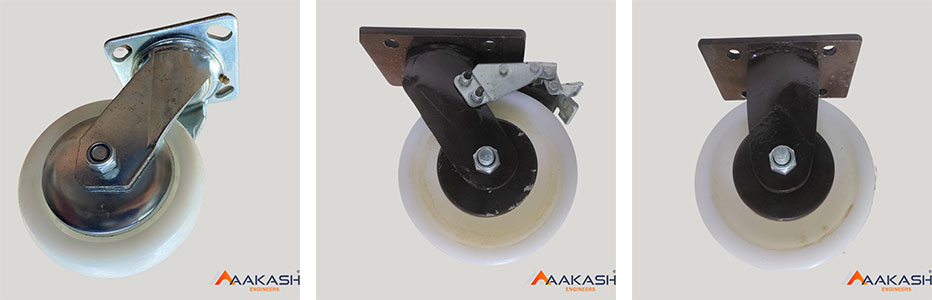

Aakash Engineer’s medium-duty casters are designed to withstand larger weight as compared to light-duty wheels. Typically, it can hold from 100 kg to 300 kg on each caster.
At Aakash Engineers we design these casters with pressed steel. Pressed steel is known for its properties of durability and strength. Hence it is a widely used material for designing caster with wheels.
Caster Size Diameter × Width (mm) | Type of Wheel (with B.B) | Plate Size (mm) | Overall Height (mm) | Hole Distance (mm) | Load Capacity (kg) |
|---|---|---|---|---|---|
100 * 50 | PU on Nylon/ Cast Iron/ U.H.M.W / HDPE | 130 * 115 | 130 | 105 * 78 | 150 |
125 * 50 | PU on Nylon/ Cast Iron/ U.H.M.W / HDPE | 130 * 115 | 167 | 105 * 78 | 200 |
150 * 50 | PU on Nylon/ Cast Iron/ U.H.M.W / HDPE | 130 * 115 | 190 | 105 * 78 | 250 |
200 * 50 | PU on Nylon/ Cast Iron/ U.H.M.W / HDPE | 130 * 115 | 225 | 105 * 78 | 275 |
Aakash Engineer’s medium-duty casters are reliable and efficient solutions for a wide range of applications. The M.S Fabricated casters are designed with high-quality mild steel fabricated material. Mild steel, therefore, is a great material to ensure the wheels are strong and can sustain heavy loads. These wheels provide smooth movement and excellent maneuverability, even in tight spaces.
Caster Size Diameter × Width (mm) | Type of Wheel (with B.B) | Plate Size (mm) | Overall Height (mm) | Hole Distance (mm) | Load Capacity (kg) |
|---|---|---|---|---|---|
50 * 25 | PU / CI / PP/Rubber | 85 * 60 | 70 | 65 * 40 | 60 |
75 * 35 | PU / CI / PP/Rubber | 85 * 60 | 100 | 65 * 40 | 100 |
100 * 35 | PU / CI / PP/Rubber | 100 * 80 | 130 | 80 * 60 | 150 |
100 * 50 | PU / CI / PP/Rubber | 115 * 100 | 145 | 85 * 70 | 150 |
125 * 50 | PU / CI / PP/Rubber | 115 * 100 | 170 | 85 * 70 | 175 |
150 * 50 | PU / CI / PP/Rubber | 115 * 100 | 195 | 85 * 70 | 250 |
200 * 50 | PU / CI / PP/Rubber | 115 * 100 | 240 | 85 * 70 | 300 |
